Smart H

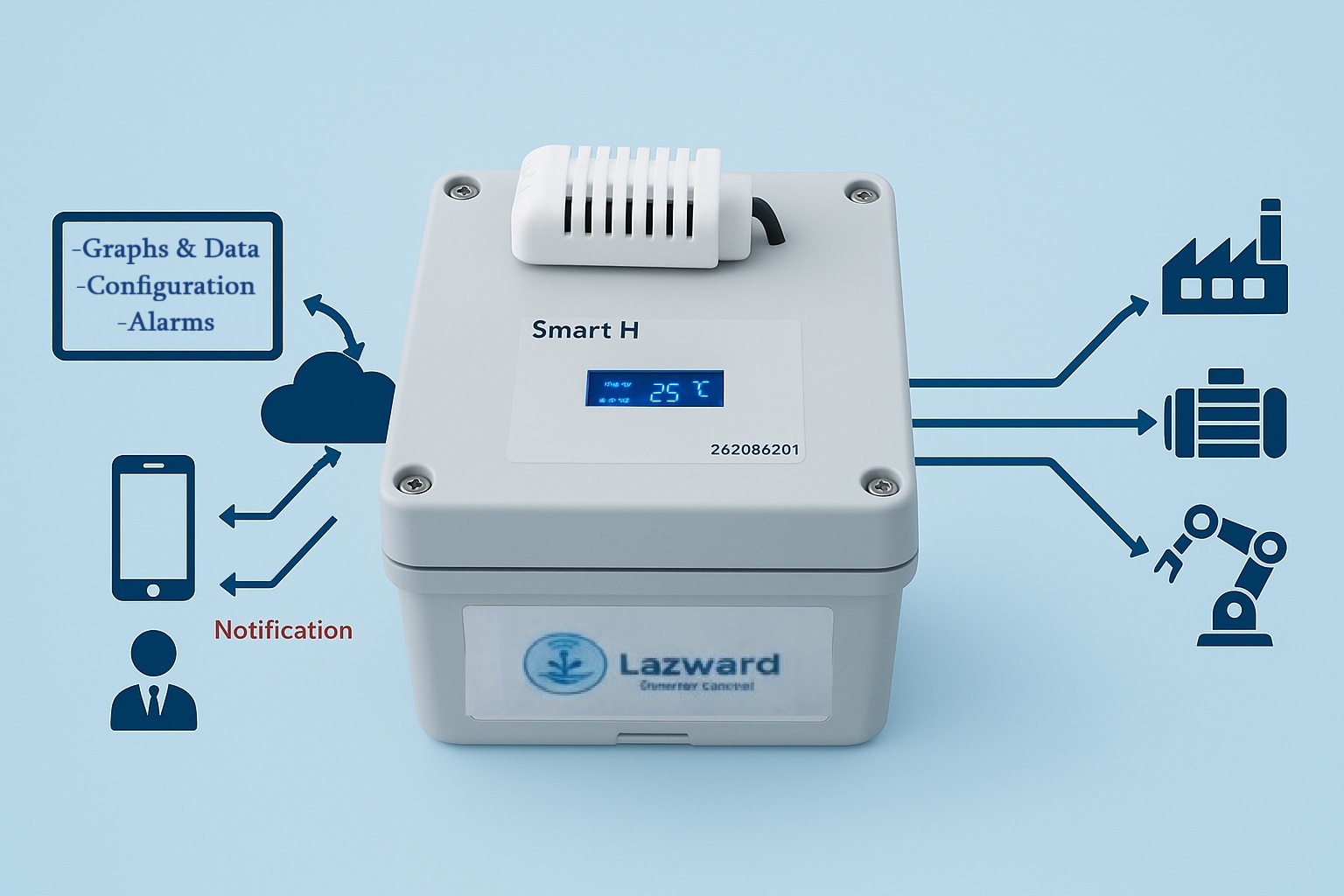

Smart-H is a versatile IoT kit that can be easily configured online to log temperature, humidity, and vibration data on the Lazward IoT platform at configurable intervals. It can take immediate on-site actions based on configurable thresholds and, in parallel, send data to Lazward IoT whenever those thresholds are crossed, enabling alarms and notifications.

Product Brand: Lazward

Product In-Stock: InStock

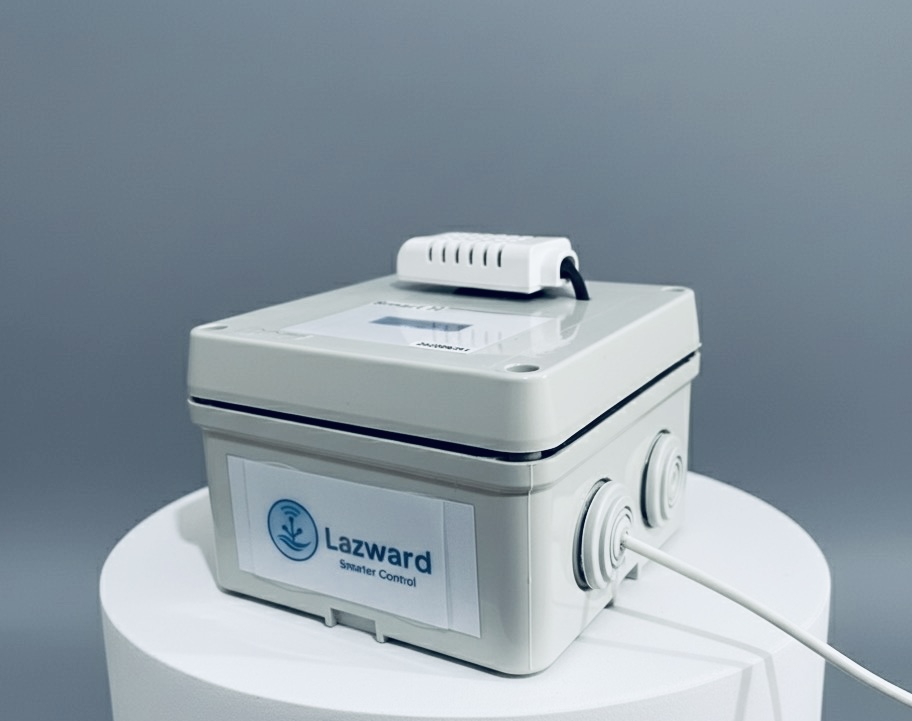

Smart -H

Smart-H is a versatile IoT kit that can be easily configured online to log temperature, humidity, and vibration data on the Lazward IoT platform at configurable intervals. It can take immediate on-site actions based on configurable thresholds and, in parallel, send data to Lazward IoT whenever those thresholds are crossed, enabling alarms and notifications.
The device continuously displays current readings on its built-in screen, and the Lazward IoT platform securely stores, visualizes, analyzes, and allows data to be exported.
Before first use, the user completes the final assembly of the kit by connecting a 9 V DC power supply, then configures the Wi-Fi credentials, device settings, and thresholds as described in the quick start guide.

Contact us
Smart H: temperature and humidity monitoring with thresholds and alerts



Key Features



Wi-Fi connectivity for cloud integration

Low cost, simple installation, and easy maintenance

Data visualization inside your Lazward Cloud account

OLED display showing current sensor readings in real time



Instant alerts on threshold crossings (plus periodic interval reports)



Taking actions by outputs for each sensor (Configurable thresholds on Lazward IoT)





Lazward IoT





Lazward IoT is a cloud-based platform designed to control and monitor Lazward’s devices. It provides:

  • Real-time visualization of live sensor data

  • Automatic data logging on Lazward cloud

  • Multi-device management from a single dashboard

  • Secure access from laptop or mobile

  • User friendly account with simple onboarding

Lazward IoT cloud platform



Technical Data



Connectivity Wi-Fi (cloud connection)
Temperature sensor -40 to 125 °C (±0.2 °C)
Humidity sensor 10% to 90% (±2%)
Vibration / Motion sensor IMU (LSM6DS3)
Input voltage (nominal) 9 V (DC)
Power Entry External wall adapter to screw terminal
Output pins Temp (High: D7 & Low: D8), Humidity (High: D9 & Low: D10), Motion (High: D11). Max 7 mA per pin. Accessible via external wires.
Display OLED 0.91″ (128×32 px)
Enclosure Semi-protected environment (greenhouse, garage), not waterproof
Dimensions 110×110 mm
